synxexample
Overview
The synx example illustrates the usage of the following synx APIs described here:
- synx_initialize
- synx_create
- synx_import
- synx_wait
- synx_signal
- synx_uninitialize
Refer to the Feature Matrix for example support and to know the DSP architecture on the target.
Project structure
inc/synxexample.idl
IDL interface that defines the synxexample API.
This IDL file is compiled by the QAIC IDL compiler into the following files:
synxexample.h: C/C++ header file
synxexample_stub.c: Stub source that needs to be built for the HLOS (LA/LE)
synxexample_skel.c: Skel source that needs to be built for the Hexagon DSP
-
src/: Source files for the HLOS executable and Hexagon-side implementation of the synxexamplesynxexample_apps.c: Demonstrates the synx APIs on HLOS side and invokes call to DSP functions that demonstrate the synx APIs on DSP.synxexample_imp.c: Demonstrates synx APIs on DSP.
Call flow of synxexample

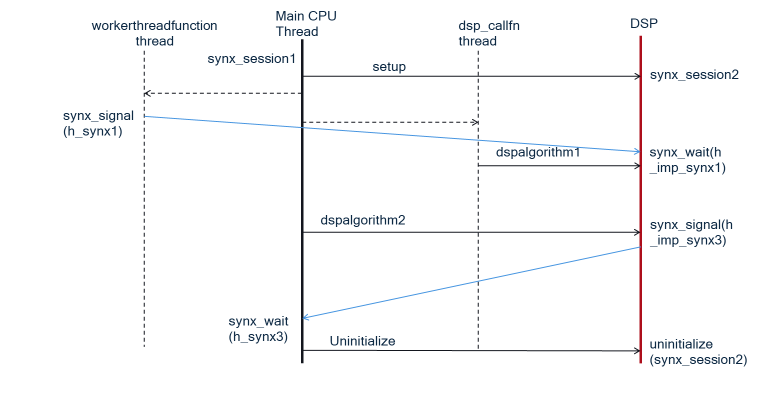

The following diagram depicts the call flow of synx example
Definition of the terms in the diagram:
| Term | Description |
|---|---|
| synx_session1 | Synx session created on CPU |
| setup | This function creates the synx session on DSP |
| synx_session2 | Synx session created on DSP |
| h_synx1, h_synx3 | Synx objects created on CPU |
| workerthreadfunction | Thread created at CPU where the h_synx1 object is signaled |
| dsp_callfn | Thread created at CPU to call the dspalgorithm1 function |
| h_imp_synx1, h_imp_synx3 | Synx objects imported on DSP that are mapped to h_synx1 and h_synx3 respectively |
| dspalgorithm1 | The DSP implementation of this function calls the synx_wait on h_imp_synx1 object |
| dspalgorithm2 | This function signals the h_imp_synx3 object that is waiting on CPU |
| Uninitialize | This function deintializes the synx_session2 on DSP |
Using the walkthrough script
The walkthrough script synxexample_walkthrough.py automates the steps of signing the device, building, pushing and running the synxexample. You can run the walkthrough script with the dry-run (-DR) option to display all the commands that the script would execute without actually running them.
Review the generic setup and walkthrough_scripts instructions to learn more about setting up your device and using the walkthrough script.
